OTOBO Kerberos SSO – Single Sign-On with Active Directory

Introduction

Kerberos SSO (Single Sign-On) enables seamless login for your agents via Active Directory without transmitting passwords in plain text. In a Docker-based OTOBO installation, NGINX is used as a web proxy with the SPNEGO module, which is compiled in a separate “builder” container. Subsequently, the dynamically generated module (ngx_http_auth_spnego_module.so) is transferred to the actual NGINX container, and the standard configuration is replaced by a Kerberos-enabled one :contentReference[oaicite:0]{index="0"}.
This follows the proven procedure in the official OTOBO Docker project, which implements a clear separation between build and runtime stages.

In this article, you will receive:

• A comprehensive overview of the differences between OTOBO and Znuny in the context of Kerberos SSO.
• A step-by-step guide from AD preparation and keytab creation to Docker configuration.
• Tips on debugging, browser setup, and best practices for various OTOBO versions.

Differences from other systems

Although OTOBO and Znuny are functionally very similar (both originate from the original OTRS project), there are the following fine-tuned adjustments in the Kerberos context:

• Configuration paths: OTOBO uses /opt/otobo-docker/nginx-conf/krb5.conf by default, while Znuny typically relies on /opt/znuny/nginx-conf/krb5.conf.
• Template files: The NGINX templates differ slightly in names and placeholder syntax; OTOBO provides a file otobo_nginx-kerberos.conf.template, while Znuny provides a similarly named znuny_nginx-kerberos.conf.template.
• Versioning: OTOBO 11.x introduces extended SSO parameters (“KerberosAdminServer”, “KerberosDefaultDomain”) that are still missing in Znuny 6.x.

Prerequisites

1. Active Directory with Kerberos (Realm and KDC already set up).
2. An OTOBO Docker setup according to Official Installation with Docker :contentReference[oaicite:2]{index="2"}.
3. DNS records:
   • An A-Record for your OTOBO FQDN (no CNAME!), e.g., otobo.example.com → 192.0.2.10.
   • Reverse lookup for the hostname so that Kerberos SPN resolutions work.

1. Active Directory User and SPN

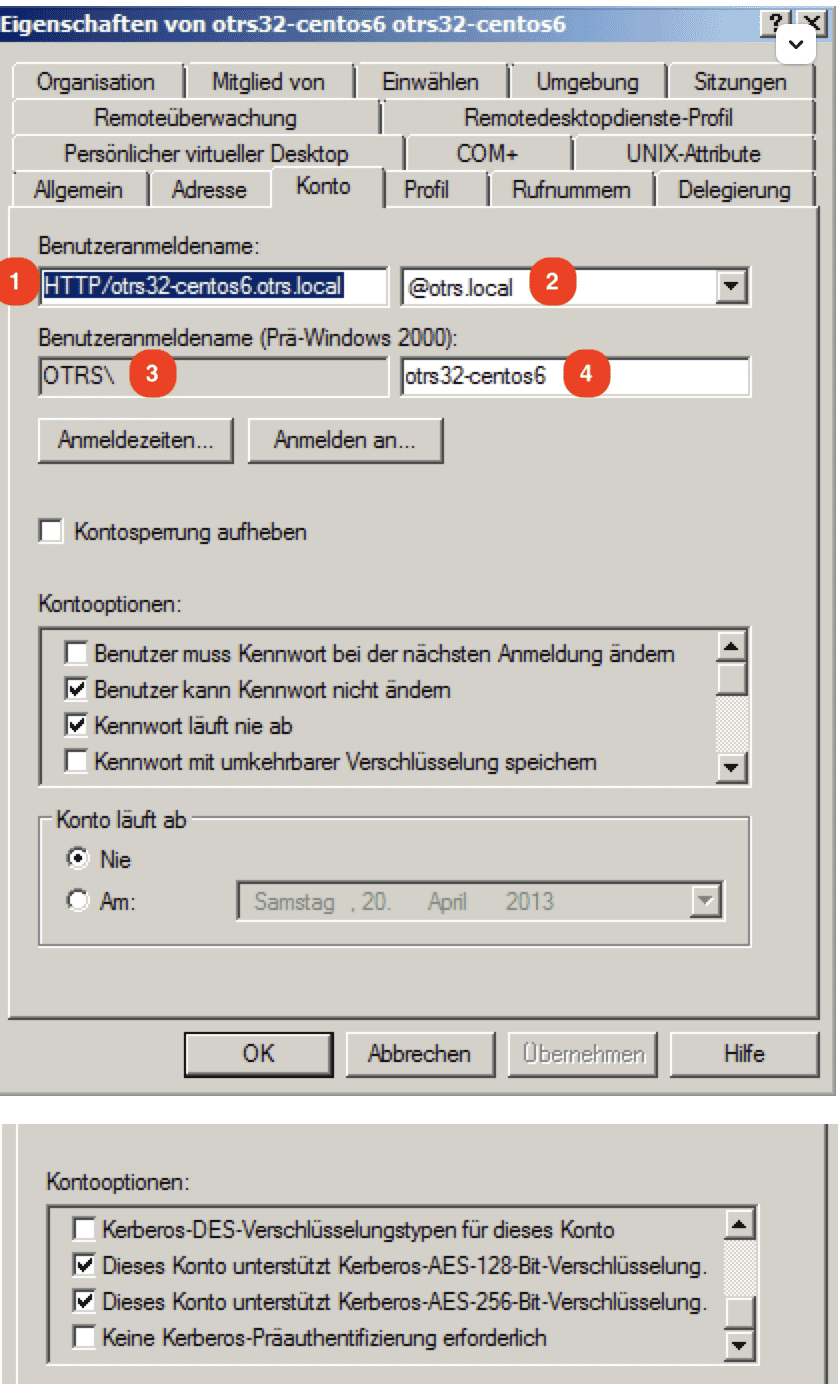

1.1 Create user

Create a dedicated service account in your AD, e.g., HTTP/otobo.example.com (UserPrincipalName). Note:

• Capitalization for HTTP/; Kerberos expects exactly this prefix :contentReference[oaicite:3]{index="3"}.
• No special characters in the password (e.g., &).

1.2 Generate SPN and Keytab

Log in to a DC with admin rights and use ktpass.exe:

ktpass.exe \
 -princ HTTP/otobo.example.com@EXAMPLE.COM \
 -mapUser EXAMPLE\\otobo-svc \
 -crypto All \
 -pass SvcUserPassword \
 -ptype KRB5_NT_PRINCIPAL \
 -out C:\krb5.keytab

• -princ: SPN with realm in uppercase.
• -mapUser: SAM account name (pre-W2K), e.g., otobo-svc (doc.otobo.de).
• -out: Path to the keytab on the DC.

Then move the keytab to the Docker host:

docker_admin> mkdir -p /opt/otobo-docker/nginx-conf
docker_admin> mv /path/to/krb5.keytab /opt/otobo-docker/nginx-conf/krb5.keytab

2. NGINX with SPNEGO module

2.1 Build stage in Dockerfile

The official Dockerfile uses a separate builder with the necessary dev packages:

FROM nginx:mainline AS builder-for-kerberos
...
RUN apt-get update && apt-get install -y gcc libc-dev make libpcre3-dev zlib1g-dev libkrb5-dev wget
WORKDIR /usr/src
RUN wget http://nginx.org/download/nginx-${NGINX_VERSION}.tar.gz \
 && wget https://github.com/stnoonan/spnego-http-auth-nginx-module/archive/${SPNEGO_AUTH_COMMIT_ID}.tar.gz
RUN tar -xzf nginx.tar.gz \
 && tar -xzf spnego-http-auth.tar.gz \
 && cd nginx-${NGINX_VERSION} \
 && ./configure --with-compat ${NGINX_CONFIG} --add-dynamic-module=../spnego-http-auth-nginx-module-${SPNEGO_AUTH_COMMIT_ID_FILE} \
 && make modules \
 && cp objs/ngx_http_auth_spnego_module.so /usr/lib/nginx/modules/

This compiles the SPNEGO module to be compatible with your NGINX release (extras.getpagespeed.com).

2.2 Configuration in the runtime container

FROM nginx:mainline AS otobo-nginx-kerberos-webproxy

COPY --from=builder-for-kerberos /usr/lib/nginx/modules/ngx_http_auth_spnego_module.so /usr/lib/nginx/modules

RUN apt-get update && apt-get install -y krb5-user libpam-krb5 libpam-ccreds krb5-multidev libkrb5-dev

COPY templates/ kerberos/templates
COPY docker-entrypoint.d/21-envsubst-on-krb5-conf.sh /docker-entrypoint.d/
RUN sed -i '4i load_module modules/ngx_http_auth_spnego_module.so;' /etc/nginx/nginx.conf

• Module-Load: Insert load_module in line 4.
• Envsubst scripts generate /etc/krb5.conf from template data.

3. Docker Volumes & nginx templates

3.1 Create custom volume

docker volume create otobo_nginx_custom_config
mp=$(docker volume inspect --format '{{ .Mountpoint }}' otobo_nginx_custom_config)
docker create --name tmp-nginx rotheross/otobo-nginx-webproxy:latest-11_0
docker cp tmp-nginx:/etc/nginx/templates/otobo_nginx-kerberos.conf.template.hidden $mp/otobo_nginx.conf.template
docker rm tmp-nginx

3.2 docker-compose override

Create docker-compose/otobo-nginx-custom-config.yml:

version: '3.7'
services:
  nginx:
    volumes:
      - otobo_nginx_custom_config:/etc/nginx/config/template-custom

Activate in the main .env:

COMPOSE_FILE=docker-compose.yml:docker-compose/otobo-nginx-custom-config.yml
NGINX_ENVSUBST_TEMPLATE_DIR=/etc/nginx/config/template-custom

4. .env adjustments

1. Back up your old /opt/otobo-docker/.env:

   mv .env .env.bak
   cp .docker_compose_env_https_kerberos .env

2. Add the Kerberos variables:

   OTOBO_NGINX_KERBEROS_KEYTAB=/opt/otobo-docker/nginx-conf/krb5.keytab
   OTOBO_NGINX_KERBEROS_CONFIG=/opt/otobo-docker/nginx-conf/krb5.conf
   OTOBO_NGINX_KERBEROS_SERVICE_NAME=HTTP/otobo.example.com
   OTOBO_NGINX_KERBEROS_REALM=EXAMPLE.COM
   OTOBO_NGINX_KERBEROS_KDC=dc1.example.com
   OTOBO_NGINX_KERBEROS_ADMIN_SERVER=dc1.example.com
   OTOBO_NGINX_KERBEROS_DEFAULT_DOMAIN=example.com

3. Transfer SSL certificates and DB passwords from your old .env.bak.

Then start with:

docker-compose down && docker-compose up -d
``` :contentReference[oaicite:6]{index=6}.

## 5. OTOBO configuration

### 5.1 Auth module in `Kernel/Config.pm`

Comment out LDAP/DB auth and add the following to your `Kernel/Config.pm`:
```perl
$Self->{AuthModule} = 'Kernel::System::Auth::HTTPBasicAuth';
$Self->{'AuthModule::HTTPBasicAuth::ReplaceRegExp'} = '^(.+?)@.+?$';

This ensures REMOTE_USER is correctly interpreted as a login (doc.otobo.de).

5.2 Activation in the Admin Interface

• System Configuration:

  • Set Customer::AuthModule to HTTPBasicAuth.
  • Apply AuthModule::HTTPBasicAuth::ReplaceRegExp.

• Kernel/Config -> Run Deploy.

6. Browser setup

For SPNEGO to work, your browser must accept the host as trusted:

Chrome / Edge / IE

• “Internet Options” → Security → Local Intranet → Sites
• Add domain https://otobo.example.com and enable “Integrated Windows Authentication” (doc.otobo.de).

Firefox

• Enter about:config in the address bar.
• network.negotiate-auth.trusted-uris = https://otobo.example.com
• network.negotiate-auth.delegation-uris = https://otobo.example.com

7. Debugging & Troubleshooting

1. Check NGINX logs

   docker logs otobo_nginx_1 -f

2. Enter the container

   docker exec -it otobo_nginx_1 bash
   cat /etc/krb5.conf
   klist -e

3. Get SPN token

   env KRB5_TRACE=/dev/stdout kvno HTTP/otobo.example.com@EXAMPLE.COM

4. Test keytab

   kinit -VV -k -t /etc/krb5.keytab HTTP/otobo.example.com@EXAMPLE.COM

   Error KDC cannot fulfill request → DNS/SPN incorrect (plugins.miniorange.com).

8. Best Practices & Security

• Separate keytab: Never reuse the LDAP sync service account; avoid password collisions.
• Least Privilege: Assign only the minimum necessary AD rights for the SSO account.
• Keytab rotation: Regularly renew the keytab every 90 days.
• TLS for KDC: If possible, enable ldaps:// or GSSAPI over TLS.
• Monitoring: Automatically monitor Kerberos tickets using tools like klist and kvno.

---

With this comprehensive guide, your OTOBO Docker instance is optimally prepared for Kerberos SSO – including secure, maintainable, and scalable authentication!

---

Sources:

• rotheross/otobo-nginx-kerberos-webproxy on Docker Hub (hub.docker.com)
• SPNEGO HTTP Auth NGINX Module (stnoonan) (extras.getpagespeed.com)
• Official OTOBO Installation Docs (11.0 SSO Kerberos) (doc.otobo.de)
• GitHub Issue #81: NGINX Kerberos broken (github.com)
• miniOrange Kerberos SSO Guide (plugins.miniorange.com)
• OTOBO Docker Override HTTPS-Kerberos (github.com)
• OTOBO Developer and Administrator Manuals
• Microsoft Docs: ktpass.exe (community.znuny.org)
• Mozilla MDN: SPNEGO in Firefox (doc.otobo.de)
• NGINX Docs: dynamic modules (extras.getpagespeed.com)
